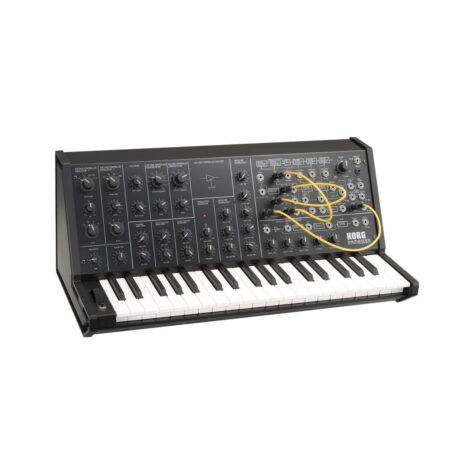

Monophonic Synthesizer
Korg’s MS-20 monophonic synthesizer, first introduced in 1978, is still a coveted instrument to this day, thanks to its thick, robust sound, its powerful, iconic analog filter, and its versatile patching options.
Today, the sounds of the MS-20 have been reborn as the MS-20 Mini. The same engineers who developed the original MS-20 have perfectly reproduced its circuitry and fitted it into a body that’s been shrunk to 86% of the original size, yet retains the distinctive look of the original that remains unfaded despite the passage of time.
The MS-20 mini will amaze you with its absolutely authentic analog synth sound.
-
-
-
- Keyboard
- C – C: 37-notes (3 octaves), mini keyboard designed specifically for the MS-20 mini
- Manual controller
- Control wheel (center click), Momentary switch -->GND

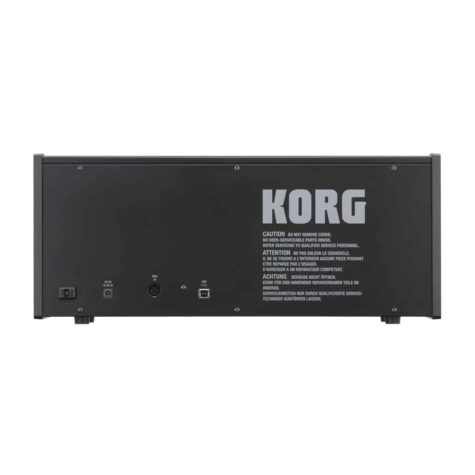

- Input and Output
- Signal In: Amplifier Out,
Band pass filter Out,
CV Out (0 – +8.4V),
ENV Out (0 – +5V),
Trig Out (+5V-->GND),Signal out: Signal output (mono 1/8″ mini phone jack, 2Vp-p output impedance 3.5k Ω)Head phones: Head phones output (Stereo 1/8″ mini phone jack, 33 Ω 48mW),
USB: Type B, USB-MIDI Input/Output
*Only note messages (velocity is not used) can be transmitted and received.MIDI: MIDI Input
*Only note messages (velocity is not used) can be transmitted and received. - Power Supply
- DC9V
- Dimensions:
(W x D x H) - 493 ×257 ×208 mm / 19.41 x 10.12 x 8.19 inches
- Weight
- 4.8 kg / 10.58 lbs.
- Accessories
- AC adaptor (9V/1.7A), Patch Cord x 10
-
-
