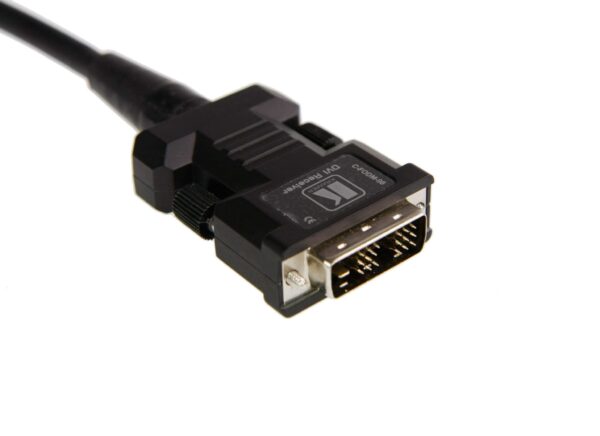

Kramer C-FODM/FODM-98 Fiber Optic Cable
The Kramer C-FODM / FODM fiber optic cable consists of a high performance hybrid cable with fiber optic cables and copper wires, terminated with DVI-D connectors on both ends. It is designed to carry DVI signals with unadulterated digital image quality over extremely long distances, with the copper wires transmitting additional data necessary for HDCP compliance.
Features
Quality Build – Kramer FODM cables comply with the DVI standard and support the DDC2B mode. They are very flexible and usually do not require an external power supply, which makes them very “easy to install”.
HDCP compliant.
High resolutions – Compatible with all DVI single link and HDTV standards up to 1080p and all VESA resolutions up to WUXGA (1920×1200) with 60 Hz refresh rate in 1 pixel / clock mode.
Flexible power options – +5 V either from the graphics card or from an external power supply that feeds into the connector
Technical Data
Compliant with DVI standard: Supports DVI standard 1.0 and DDC2B, HDCP compliant
Max. Length: 100m for WUXGA (1920×1200) with 60 Hz
Bandwidth: Suitable for UXGA with 60 Hz or 1.65 Gbit / s per graphics channel
Hybrid fiber optic cable: Fire retardant PVC jacket, 4x duplex optical fiber for transmission + 1 copper core for power transmission
Tensile strength: 1,800 N
Min. Bending radius: 15.4cm
Outer diameter: 7.6mm
Power supply: 5 VDC, <500 mA
Max. Clamping on cable: 14 kgf
Temperature: Operating: 0 to 50 ° C, Storage: – 40 to 70 ° C
Rel. Humidity: 5 to 85%
Color: Black
Length: 30m
Weight: 2.7kg
