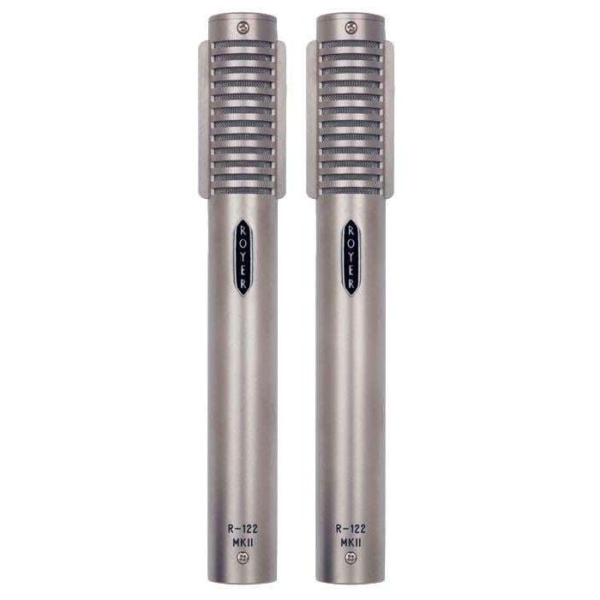

R-122 MKII-MP-båndmikrofonen (Matched Stereo Set) fortsætter i rækken af Royer´s originale R-122 mikrofonr som var verdens første phantom-drevne aktive båndmikrofon.
Her er den naturlige R-121-lyd, men med 13 dB mere output, en omskiftelig -15 dB pad, en omskiftelig bas cut og impedans matching kredsløb, der gør den brugbar sammen med stort set alle preamps.

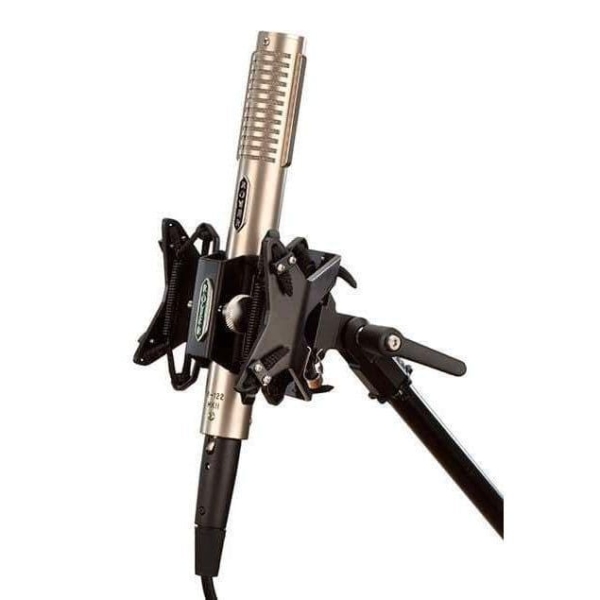

NB, det er en god ide at tilkøbe Sling-Shock RSM-SS1 som ses på sidste billede.
Specifikationer
- Phantom powered circuitry provides high output and impedance matching
- -15 dB pad before the mic’s electronics gives more headroom when activated.
- Bass cut filter reduces proximity effect and bass below 100 Hz when activated
- High SPL Capabilities
- No distortion up to maximum SPL rating
- Extremely low residual noise
- Ribbon element is not affected by heat or humidity
- Absence of high frequency phase distortion
- Equal sensitivity from front or back of element
- Consistent frequency response regardless of distance
- Rear side of mic records slightly brighter when three feet or closer to sound source
- Acoustic Operating Principle: Electrodynamic pressure gradient with active
- electronics.
- Polar Pattern: Figure-8
- Generating Element: 2.5-micron aluminum ribbon
- Magnets: Rare Earth Neodymium
- Frequency Response: 30 – 15,000 Hz ±3 dB
- Sensitivity: -36 dB (re. 1v/pa ±1 dB)
- Switchable Pad: -15 dB
- Switchable Bass Cut: 100 Hz (6 dB per octave)
- Self-Noise: < 18 dB
- Output Impedance: 200 Ohms, balanced
- Output Connector: Male XLR 3-pin (Pin 2 Hot)
- Rated Load Impedance: 1K-Ohm minimum
- Maximum SPL: 135 dB @ 30 Hz
- Power Requirements: 48-Volt Phantom Only
- Supply Current: 4 mA
- Dimensions: 206mm L X 25mm W (8 1/8” L X 1” W)
- Weight: 309 grams (10.9 oz)
- Finish: Burnished Satin Nickel / Matte Black
- Chrome (optional)
- Accessories: Protective wood case, mic sock
- Optional Accessories: Wind screen, shock mount
Applications
- Electric Guitar Amps
- Acoustic Guitar
- Drum Overheads
- Percussion Instruments
- Brass and Woodwinds
- Horn Sections
- Acoustic Piano
- Acoustic Guitar
- Harp
- Solo Strings & String Sections
- Choirs and Orchestras
- Commercial Broadcast
- Voice Over
