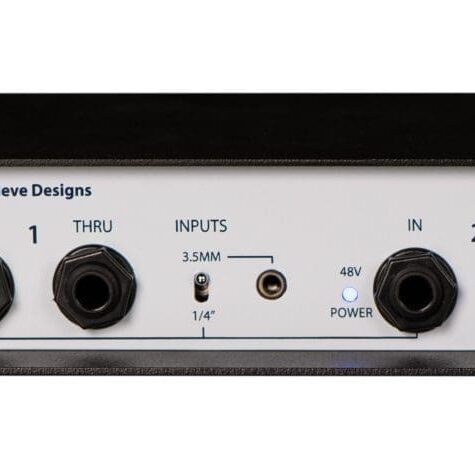

High-end to-kanals transformer-baseret DI-boks fra den legendariske Rupert Neve´s hånd.
Rupert Neve Designs RNDI-S signaturlyd er produktet af nye custom Rupert Neve-designede transformatorer og class-A, diskrete FET amps. Den nøje optimering af disse to elementer er nøglen til RNDI-S. RNDI-S leverer en kraftfuld og levende direkte lyd, med fantastisk harmoniske dybde med massiv tone og masser af headroom til alle instrumenter og stereo-kilder.
Specifikationer:
Custom Rupert Neve Designs transformers for rich, powerful tone
• Exceptional performance with any instrument
• Unrivaled clarity from discrete FET amplifiers
• Drives long lines with minimal loss
• Rugged steel frame built for life on the road
• Powered by dual 48V phantom power
• Excellent phase coherence at all frequencies
Generelle RNDI Specs.:
Noise:
- Measured Output, un-weighted, 22Hz-22kHz, source impedance 150 Ohms to 10K Ohms
- Better than -110dBV
Input Impedance
- Instrument Setting: 2.2 Meg Ohm
- Speaker Setting: 200k Ohm
Output Impedance
- Less than 40 Ohms
Frequency Response
- +/- 0.25dB from 25Hz – 44kHz
- +/- 1dB from 12.5Hz – 63kHz
- -3dBu @ 92kHz
Maximum Input Level
- Instrument = +21dBu Typical Speaker = +41.5dBu, 92 Vrms (266Vp-p)
Maximum Output Level
- +11.5dBu output at maximum input level
Total Harmonic Distortion plus Noise
- @ 1kHz, +20dBu input level:
- 0.25% Typical (2nd and 3rd harmonic)
- @ 1kHz, -20dBu input level :
- 0.015% Typical (2nd and 3rd harmonic)
- @ 20Hz, -20dBu input level :
- 0.75% Typical (2nd and 3rd harmonic)
Power Requirements
- Phantom power, 4.5mA @ +48VDC
