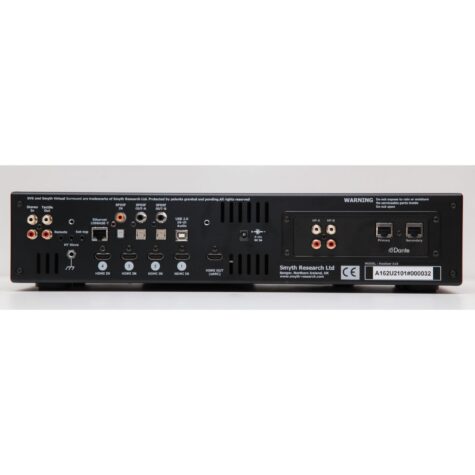

Smyth Research A16 Realiser Dante

The Realiser A16 is a real-time multi-speaker sound room rendering processor for headphone monitoring. The A16 implements the SVS virtualisation technology, supporting sound room and headphone personalisation together with head tracking for two separate listeners and is capable of replicating sound rooms of up to 16 speakers* with unprecedented realism. Audio that is to be rendered can be input through a variety of audio interfaces including, USB, HDMI (2.0b) and Dante. The A16 also includes Dolby Atmos, dts-X and Auro3D** decoders for bit-streams input via HDMI, eARC or SPDIF. A 16-ch Dante output is also provided for audio loop-back and to facilitate sound room personalisation measurements.

RENDERING INPUTS

• 16-ch 24-bit PCM 192kHz Dante
• 16-ch 24-bit PCM USB 96kHz MAC/Windows compatible + ASIO
• 2-ch Analog 2Vrms 20-22kHz @110dB SNR
• 2-ch 24-bit PCM SPDIF 96kHz (COAX + OPTICAL)
• 8-ch 24-bit PCM 192kHz HDMI-1, HDMI-2, HDMI-3, HDMI-4, eARC
• 24-ch Dolby Atmos Decoder 192kHz (via HDMI, eARC or SPDIF)
• 12-ch DTS-X Decoder 192kHz (via HDMI, eARC or SPDIF)

AUDIO OUTPUTS

• 16-ch 24-bit PCM 192kHz Dante
• 2-ch Analog Tactile 2Vrms @105dB SNR

HEADPHONE OUTPUTS

• User A stereo analog headphone output (1/4″ JACK, RCA) 16-600 Ohms 9Vrms
• User A stereo 24-bit PCM 48kHz headphone output SPDIF (COAX + OPTICAL) and USB
• User B stereo analog headphone output (1/4″ JACK, RCA) 16-600 Ohm 9Vrms
• User B stereo 24-bit PCM 48kHz headphone output SPDIF (COAX + OPTICAL) ** will be available later via a firmware update
