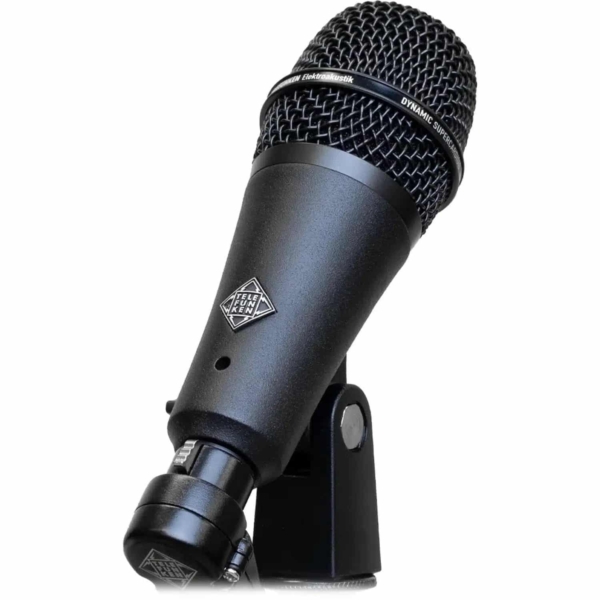

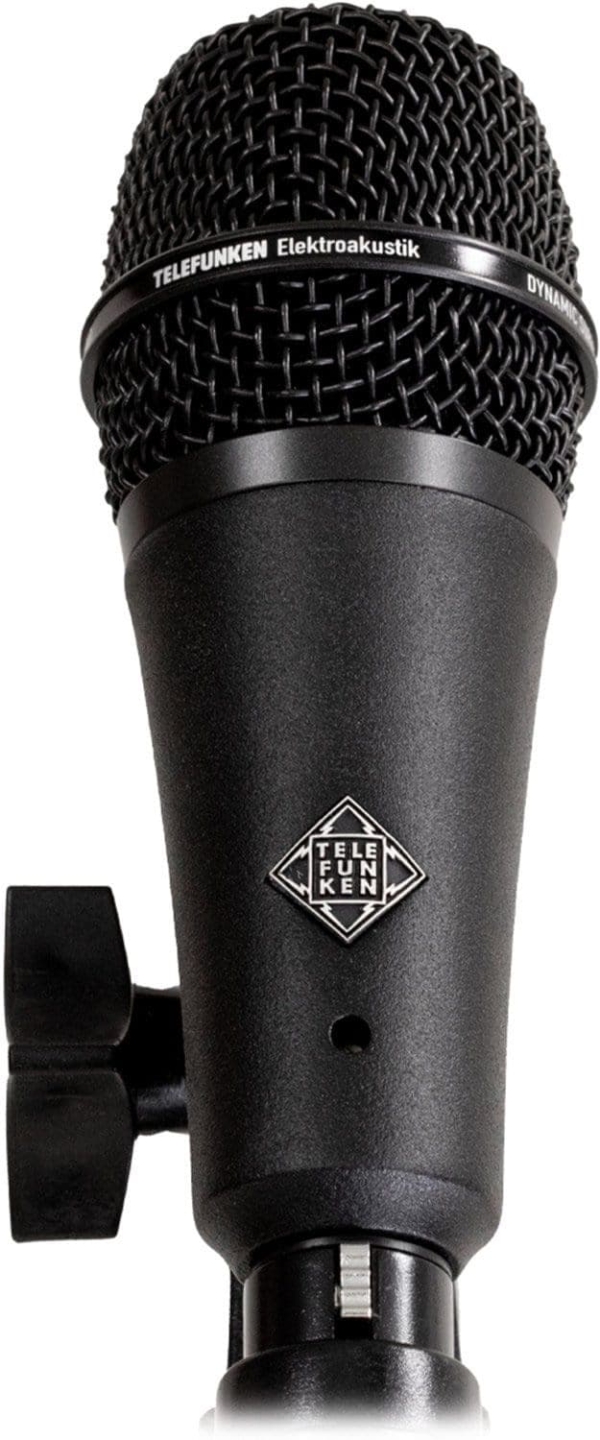

Telefunken M80-SH Short Handle Dynamic Microphone
The Telefunken M80-SH is a short-handle version of the critically acclaimed M80 dynamic microphone, designed for tight mic placements in live, studio, and broadcast environments. Compact yet powerful, the M80-SH delivers the same full-range, condenser-like clarity as the standard M80, while offering enhanced flexibility for drum kits, instrument amps, podcast arms, and tight mounting applications.
Built around the same low-mass capsule and custom-wound impedance-matching transformer found in the full-size M80, the M80-SH delivers articulate highs, punchy mids, and tight, controlled low-end. It’s a favorite among drummers for close-miking snare drums, toms, and guitar cabinets, where space is limited but uncompromised sound is essential.
The cardioid polar pattern ensures excellent off-axis rejection and high gain-before-feedback, making it an excellent choice for live sound setups or isolated studio recording. Despite its compact form, the M80-SH maintains the same performance specs and premium component quality as the larger model — all wrapped in a rugged, road-ready housing.
Available in classic black or a variety of custom finishes, the Telefunken M80-SH is hand-assembled in the USA and includes a microphone clip and protective zipper pouch. Whether you’re mounting it on a drum, amp, or broadcast boom arm, the M80-SH is a compact powerhouse with unmatched sonic precision.
Key Features:
- Short-handle dynamic microphone with full-range sound
- Same sonic performance as the standard M80 in a compact format

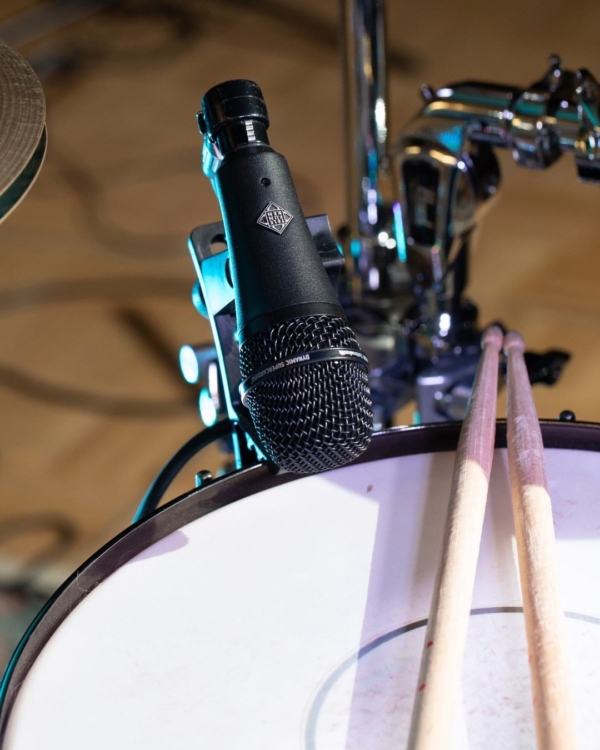

- Ideal for drums, guitar cabs, close-miking, and broadcast rigs
- Custom-wound transformer for balanced, condenser-like clarity
- Low-mass capsule delivers extended frequency response
- Cardioid polar pattern for focused sound and low bleed
- Includes mic clip and padded zipper pouch
- Hand-built in the USA using premium components
Ideal Applications:
- Snare drums and toms
- Guitar and bass cabinets
- Podcast arms and broadcast setups
- Close-miking in tight spaces
- Live and studio instrument tracking
Technical Specifications:
- Type: Dynamic moving coil microphone
- Polar Pattern: Cardioid
- Frequency Response: 50 Hz – 18 kHz
- Sensitivity: 1.54 mV/Pa
- Output Impedance: 200 ohms
- Maximum SPL: >135 dB
- Connector: 3-pin XLR
- Finish: Black body with chrome grille (custom colors available)
- Dimensions: Length 141 mm x Diameter 48 mm
- Weight: 370 g
- Power Requirements: None (passive)
- Manufactured in: USA
The Telefunken M80-SH is a compact yet powerful microphone that excels where space is limited and performance is non-negotiable. Whether on stage, in the studio, or mounted on a podcast arm, it offers rich detail, durability, and flexibility — all in a streamlined short-handle design.
