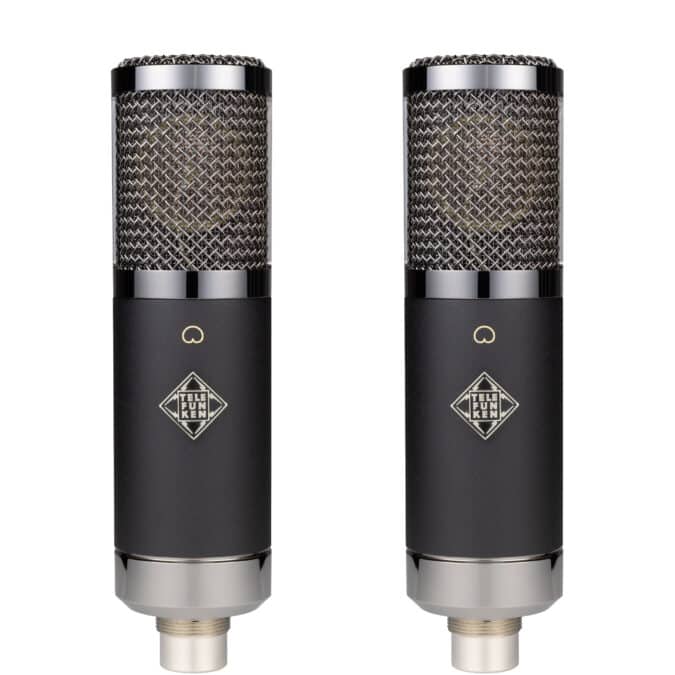

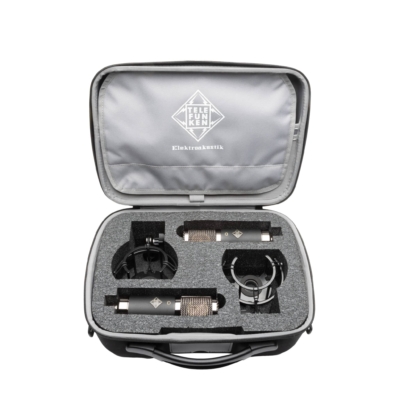

The TF17 Stereo Set is designed for high fidelity stereo or dual mono recording in the studio or on stage. Combining an iconic “German” inspired mid-forward character with modern FET technology, the TF17 features an extended low frequency response, bold midrange and smooth top end with a fast transient response, high SPL handling, and low self-noise. When used in stereo, the TF17 provides a rich and focused sound stage. Featuring a matched pair of TF17 microphones, this set is ideal for drums and percussion, piano, and vocal or brass ensembles. Each microphone features a K47-style center terminated capsule, precision through-hole components and a discrete, hand-tuned JFET amplifier. The capsules and amplifiers are frequency, gain and noise matched. All TF17 Stereo Sets are assembled, matched, and tested in the USA.
Specifications:
Polar Pattern: Cardioid
Frequency Range: 20 Hz – 20 kHz, ±3 dB
Capsule: TK47S – Center Terminated Large Diaphragm, Single Membrane
Amplifier Type: Transistor (+48V phantom power required)
Transformer: OEP/Carnhill T217
Sensitivity: 12 mV/Pa, ±1 dB
THD at 1 kHz at 1 Pa (Amplifier): 0.01%
Output Impedance: < 200 Ω
Maximum SPL (for 1% THD): > 135 dB
S/N Ratio: 91 dBA
Self-Noise (Amplifier): 3 dBA
Dimensions: 175 mm L x 46 mm Dia
Weight: 545 g
