Elektron Digitone Keys

Digitone Keys er en 37 keys “eight voice” polyohonisk digital synthesizer i ægte Elektron ånd. Kompakt, hårdfør og “to-the-point”, grundliggende er den Elektrons “take” på FM synthesis, men selvfølgelig med et tvist som gør den helt unik.

Ultra digital
Vælg mellem flere FM algorithmer med udvalgte parametre og brug de kraftulde filtre til at arbejde med lyden. Digitone indeholder også også en sequencer og en kraftfuld effekt-engine som gør den ultra-kreativ at arbejde med både i studiet og live.

Digitone Keys specifications

Synth voice features

• 8 voice polyphony (multitimbral)
• Multiple FM algorithms
• 1 × multimode filter per voice
• 1 × base-width filter per voice
• 1 × overdrive per voice
• 2 × assignable LFO per voice

Sequencer

• 4 synth tracks
• 4 MIDI tracks
• 1 arpeggiator per track
• Polyphonic sequencing
• Individual track lengths
• Parameter locks
• Micro timing
• Trig conditions
• Sound per step change
• Send & master effects
• Panoramic Chorus send effect
• Saturator Delay send effect
• Supervoid Reverb send effect
• Overdrive master effect

Hardware

• 37-key semi-weighted, velocity sensetive keyboard with aftertouch
• Assignable pitch and modulation wheels
• 8 × user assignable rotary encoders

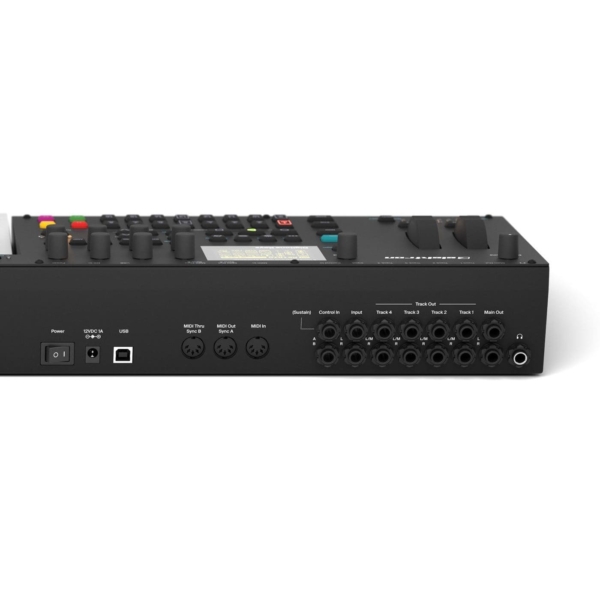

• 2 × 1/4” impedance balanced main out jacks
• 8 × 1/4” impedance balanced track out jacks
• 128 × 64 pixel OLED screen
• 2 × 1/4” impedance balanced audio out jacks
• 2 × 1/4” audio in jacks
• 1 × 1/4” stereo headphone jack
• 48 kHz, 24-bit D/A and A/D converters
• Hi-Speed USB 2.0 port
• MIDI In/Out/Thru with DIN Sync out
• Physical specification
• Sturdy steel casing

Dimensions:

• W868 × D185 × H90 mm (including knobs, feet, and jacks)
• Weight: approximately 6 kg

Miscellaneous

• Overbridge enabled
• 3 year Elektron warranty

Included in the box

• Power Supply PSU-3b
• Elektron USB cable

8 voice polyphonic
digital synthesizer

Restrictions are for the dreamless
With this ready-to-go performance machine, curiosity is all you need. Wield the Digitone’s powerful sound engine with even more control with intuitive sound crafting, 37 keys, 8 voice polyphony, mod and pitch wheels, dedicated outputs per track, and brand new customizable controls. Multimap lets you configure and assign individual sounds per region, triggering sounds or patterns with the tap of a key, while the ability to use portamento and arpeggio flourishes with the freedom of three octaves. Twist through the looking glass and back with the flick of a wrist.

Sculpt your sound
With the Digitone’s powerful and easy to use FM engine you have Digitone dynamism in keyboard form. A variety of dedicated features put the power at your fingertips. Get maximum control out of the machine with eight new assignable knobs. Choose the function you want for each knob to tailor your Digitone Keys, and then let loose. The freedom to switch between tempestuous and serene soundscapes in an instant is laid out in front of you. In an Elektron first, the Digitone Keys helps you liberate your live show with a flexible mod and pitch wheel setup, allowing you to warp your sound to another world with multiple modulations.

Get connected
With separate outputs for each track, connecting to external effects mixers and pedals, audio interfaces, and modulation sources is easier than ever before. Pinpoint single Digitone Keys tracks to process independently from the rest of your sound.
