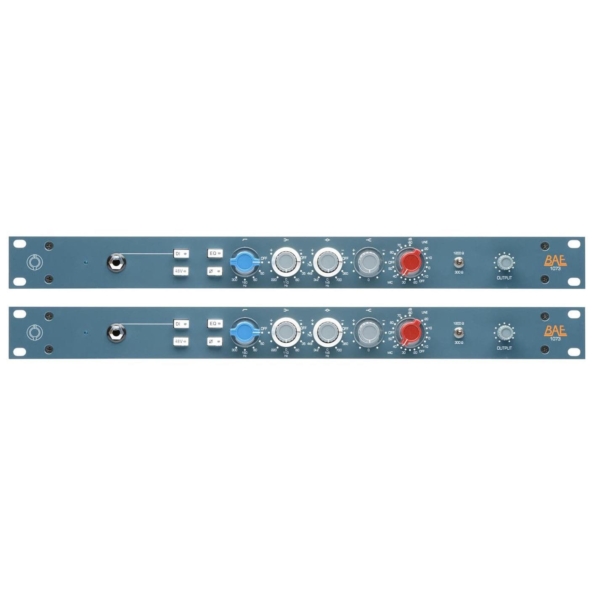

BAE 1073 Pair Mic Pre/EQ w/PSU
The BAE 1073 Pair Mic Pre/EQ w/PSU delivers the unmistakable sound of the classic 1073 signal path in a matched dual-channel configuration, complete with a dedicated external power supply. Hand-built by BAE Audio, this pair faithfully recreates the tone, depth, and musicality that have defined countless iconic recordings.
Each channel features a fully Class A, transformer-balanced microphone preamplifier paired with the legendary 3-band 1073 equalizer. High-quality Carnhill input and output transformers provide authoritative low end, a forward and musical midrange, and smooth, harmonically rich highs. The result is a sound that excels on vocals, guitars, drums, bass, and stereo sources where character and control are essential.
The integrated EQ offers a selectable high-frequency shelf, a musical mid-band with selectable frequencies, and a fixed low-frequency shelf — ideal for shaping tone directly at the source. With two identical channels and a dedicated PSU ensuring optimal headroom and stability, the BAE 1073 Pair is perfectly suited for stereo tracking, mix bus coloration, and premium recording chains.
Features
- Matched pair of classic 1073-style mic preamp/EQ modules
- Fully Class A, transformer-balanced signal path
- Carnhill input and output transformers
- Integrated 3-band EQ per channel
- High-frequency shelving EQ (selectable frequencies)
- Mid-band EQ with selectable frequencies
- Low-frequency shelving EQ (fixed)
- Stepped input gain with musical saturation characteristics
- Phantom power and phase reverse per channel

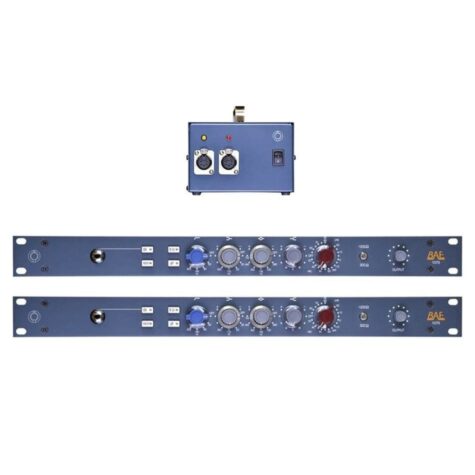

- Includes dedicated external power supply (PSU)
- Hand-built with premium components
Applications
- Stereo and dual-mono vocal recording
- Electric and acoustic guitars
- Bass and DI sources
- Drum overheads and percussion
- Analog tone shaping during tracking and mixing
Technical Specifications
- Type: Dual-channel microphone preamp with integrated EQ
- Topology: Class A, transformer-balanced
- Input Transformers: Carnhill
- Output Transformers: Carnhill
- Gain Range: Up to approx. 80 dB
- EQ Bands: High shelf, mid bell, low shelf (per channel)
- Controls: Gain, EQ, Phase, Phantom Power
- Power Supply: External PSU (included)
- Format: Rackmount modules (pair)
