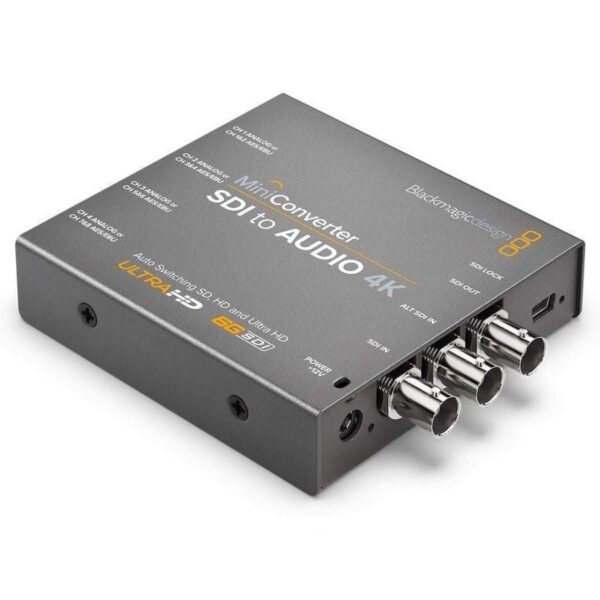

Blackmagic Mini Converter SDI to Audio 4K – Professional SDI Audio De-Embedding with Ultra HD Support
The Blackmagic Mini Converter SDI to Audio 4K is a professional-grade solution for extracting audio from any SDI video signal and outputting it as analog or AES/EBU digital audio. Designed for high-end post-production, broadcast, and AV integration, it supports a wide range of SDI formats including 6G-SDI, enabling video resolutions up to 2160p30 Ultra HD.
Whether you’re routing audio to mixing desks, monitors, or recording systems, this compact and reliable converter ensures broadcast-quality audio de-embedding from SD, HD, 3G, and Ultra HD SDI sources. With built-in automatic input format detection and a professional-grade build, it’s ready to integrate seamlessly into any workflow.
Key Features:
- De-embeds audio from SDI video signals
- Supports up to 4 analog or 8 AES/EBU digital audio channels
- Compatible with SD, HD, 3G, and 6G-SDI formats
- Ultra HD support up to 2160p30
- High-quality 24-bit audio conversion
- Loop-through SDI output for easy signal routing
- Includes 12V universal power supply with international plug adapters
Technical Specifications:
- SDI Video Input: 1 x SD/HD/3G/6G-SDI
- SDI Loop Output: 1 x SDI loop-through
- Analog Audio Output: 4 x XLR (via breakout cable)
- Digital Audio Output: 2 x AES/EBU (via breakout cable)
- Supported Resolutions: SD to 2160p30 Ultra HD
- Audio Sampling: 24-bit, 48 kHz
- SDI Compliance: SMPTE 259M, 292M, 424M, 2081
- Power Supply: 12V DC (locking power connector, PSU included)
- Dimensions: 112 x 92 x 25 mm
- Weight: Approx. 300 g
Ideal For:
This converter is perfect for broadcast facilities, post-production houses, and live sound environments where professional audio needs to be extracted from SDI video feeds. With full Ultra HD support and flexible audio output options, the Blackmagic SDI to Audio 4K is a reliable tool for any high-resolution video and audio workflow.
Unlock precise audio de-embedding with the Blackmagic Mini Converter SDI to Audio 4K — built for professionals who demand clarity, flexibility, and performance.
