Heritage Audio Super 8 Channel Mic Preamp with ADC

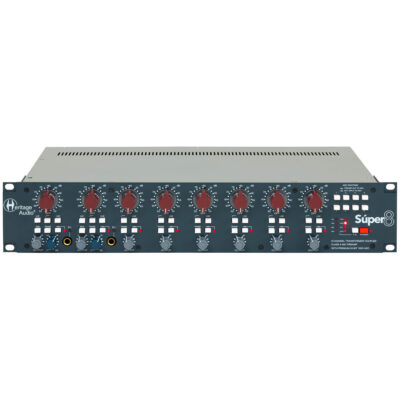

The Heritage Audio Super 8 Channel Mic Preamp with ADC is a premium multichannel preamplifier designed for professional recording studios and demanding production environments. Featuring eight channels of pristine Class-A microphone preamps coupled with a world-class Analog-to-Digital Converter (ADC), the Super 8 delivers unmatched sonic quality, flexibility, and workflow efficiency.

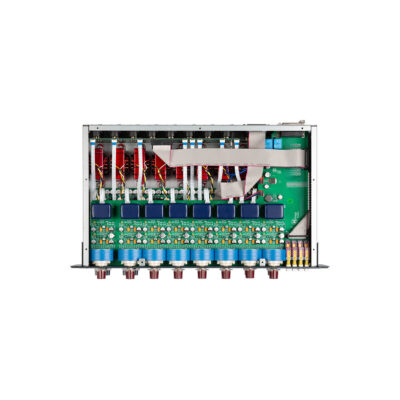

Each channel boasts fully discrete circuitry inspired by classic British console designs, offering rich harmonic content, detailed transients, and exceptional headroom. Whether recording drums, ensembles, or full band sessions, the Super 8 ensures every nuance is captured with stunning clarity and analog warmth.
The integrated premium ADC allows direct digital connection to your recording system via ADAT or S/PDIF, offering high-resolution conversion up to 192 kHz. With multiple output options, phase reverse switches, pad controls, and phantom power on every channel, the Super 8 is a powerful front-end solution for expanding any studio setup.
Key Features:
- Eight high-quality Class-A fully discrete microphone preamps
- Built-in premium Analog-to-Digital Converter (ADC)
- ADAT and S/PDIF digital outputs for seamless DAW integration
- Selectable gain, pad, phase reverse, and +48V phantom power per channel
- Classic British console-inspired circuit topology
- Extended headroom and ultra-low noise floor
- High-resolution digital conversion up to 192 kHz / 24-bit
- Durable 2U rackmount chassis with robust construction
- Ideal for drums, vocals, acoustic instruments, orchestral recordings, and more
Technical Specifications:

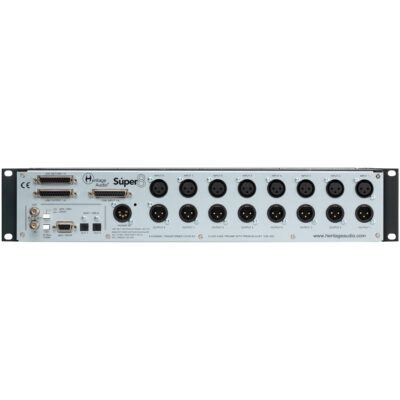

- Mic Inputs: 8 x XLR
- Line Outputs: 8 x TRS balanced outputs
- Digital Outputs: ADAT and S/PDIF (optical)
- Gain Range: Up to 70 dB
- Phantom Power: +48V individually selectable
- Pad: -20 dB per channel
- Phase Reverse: Yes, per channel
- ADC Resolution: 24-bit, up to 192 kHz sample rate
- Frequency Response: 20 Hz – 20 kHz ±0.2 dB
- Dynamic Range: >120 dB
- THD+N: <0.001%
- Dimensions: 2U 19″ rackmount
- Weight: Approximately 6.5 kg
Expand your studio’s capabilities and capture every detail with true analog warmth and digital precision. The Heritage Audio Super 8 Channel Mic Preamp with ADC is the perfect solution for engineers and producers who demand world-class sound quality across multiple channels.
