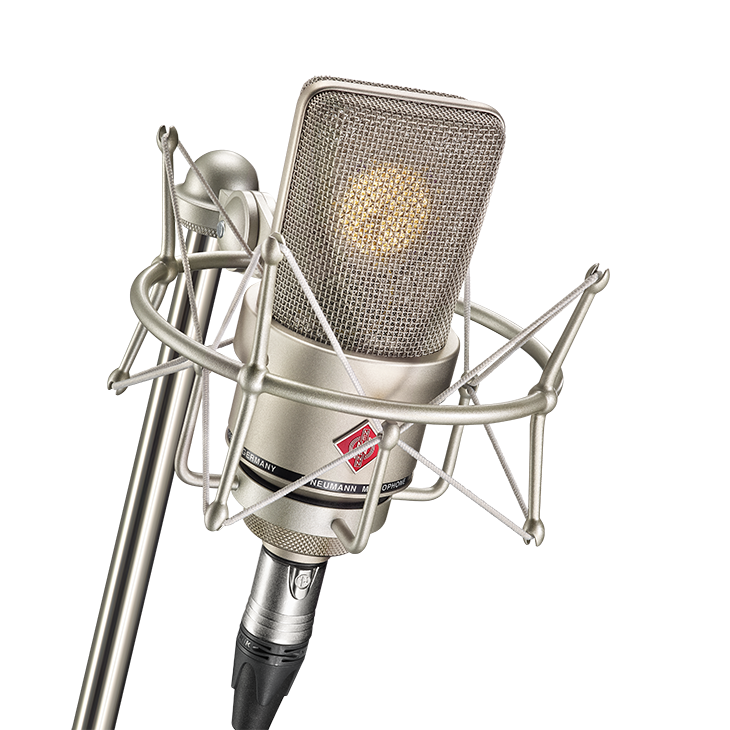

Neumann TLM 103 Studio Set
The Neumann TLM 103 Studio Set is a large-diaphragm condenser microphone package designed for professional recording, broadcast, and voiceover applications Known for its precision, warmth, and low self-noise, the TLM 103 captures vocals and instruments with the clarity and depth expected from Neumann microphones Its sound signature is directly derived from the legendary U 87, offering a detailed yet smooth tone that fits perfectly into any mix
The Studio Set includes the TLM 103 microphone and the EA 1 elastic shock mount, providing secure positioning and effective isolation from vibrations With its transformerless circuitry, the TLM 103 delivers a transparent signal path, high dynamic range, and outstanding reliability for modern recording studios
Features
- Large-diaphragm condenser microphone with classic Neumann tone
- Cardioid polar pattern for focused sound capture and minimal room coloration
- Exceptionally low self-noise (7 dB-A)
- High sensitivity and wide dynamic range
- Transformerless output for clean, distortion-free audio
- Ideal for vocals, acoustic instruments, and voiceover work
- Includes EA 1 shock mount for vibration isolation
- Handcrafted in Germany with precision components
Applications
- Studio vocals and voiceover
- Acoustic instruments and piano
- Drum overheads and room microphones
- Broadcast and podcast production
Included
- Neumann TLM 103 microphone
- EA 1 elastic shock mount
- Wooden presentation box
Technical Specifications
- Acoustic Principle: Pressure gradient condenser
- Polar Pattern: Cardioid
- Frequency Response: 20 Hz – 20 kHz
- Sensitivity: 23 mV/Pa
- Equivalent Noise Level: 7 dB-A
- Maximum SPL: 138 dB (05% THD)
- Output Impedance: 50 Ω
- Signal-to-Noise Ratio: 87 dB (A-weighted)
- Power Supply: 48V ±4V phantom power
- Connector: XLR 3-pin
- Dimensions: 60 × 132 mm (⌀ × L)
- Weight: approx 450 g
