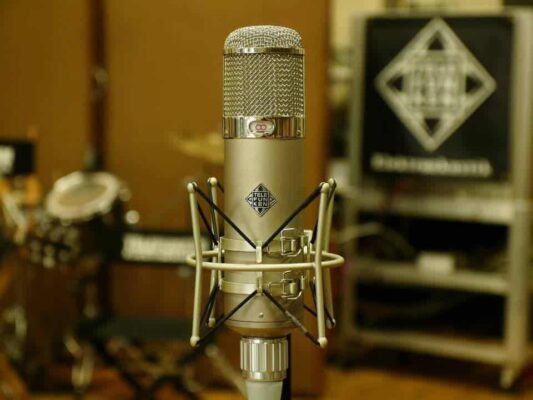

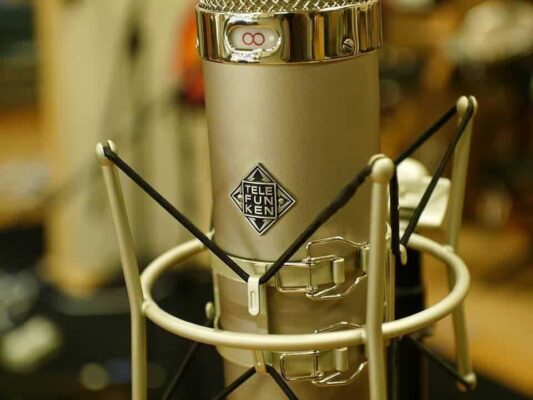

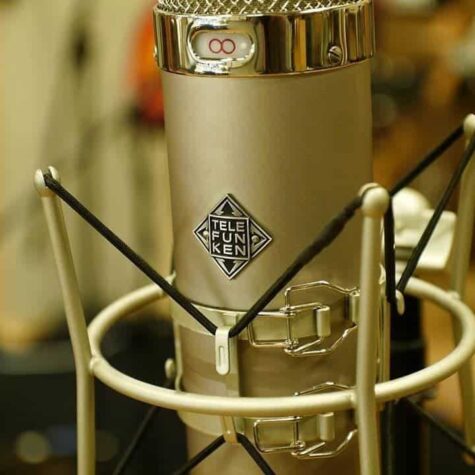

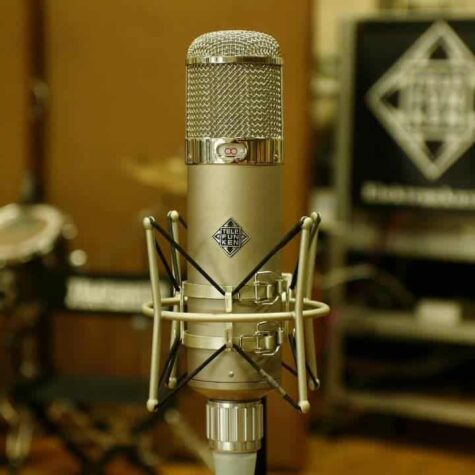

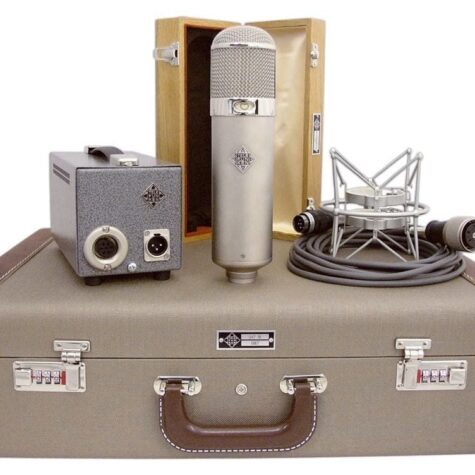

Telefunken U48 Large-Diaphragm Condenser Microphone
The Telefunken U48 is a high-end, large-diaphragm condenser microphone renowned for its exceptional warmth, clarity, and versatility. Offering the sonic characteristics of its legendary predecessor, the U47, the U48 is a dual-pattern microphone designed to meet the most demanding recording applications. Whether you’re capturing vocals, instruments, or room ambiance, the U48 delivers studio-quality sound with incredible detail and accuracy.
Featuring a dual polar pattern design (cardioid and figure-8), the U48 provides unmatched flexibility in both studio and live recording environments. The cardioid mode ensures focused, natural sound capture, while the figure-8 pattern excels in stereo applications, room miking, and capturing nuanced performances from both sides of the microphone. The U48 is perfect for capturing vocals, orchestral recordings, and even broadcast applications, making it a must-have for any professional recording setup.
Hand-assembled in the USA, the Telefunken U48 uses premium components and rugged construction, ensuring reliable performance across a wide range of applications. Whether you’re a professional recording artist, engineer, or content creator, the U48 will provide exceptional clarity, warmth, and musicality in every recording.
Key Features:
- Large-diaphragm condenser microphone with dual polar patterns (cardioid and figure-8)
- Warm, detailed sound capture with natural frequency response
- Classic design inspired by the legendary U47 microphone
- Ideal for vocals, orchestral recordings, and room miking
- High SPL handling, suitable for both soft and loud sources
- Low self-noise for clean, high-fidelity recordings
- Hand-assembled in the USA using premium components
- Includes an internal shockmount to reduce handling noise
Ideal Applications:
- Lead and background vocals
- Orchestral recordings
- Room miking and stereo recording techniques
- Acoustic instruments (guitar, piano, strings)
- Podcasting, broadcasting, and voiceover work
- Live sound and broadcast applications
Technical Specifications:
- Type: Large-diaphragm condenser microphone
- Polar Patterns: Cardioid, Figure-8
- Frequency Response: 20 Hz – 20 kHz
- Sensitivity: 18 mV/Pa
- Output Impedance: 200 ohms
- Maximum SPL: 135 dB
- Connector: 3-pin XLR
- Finish: Matte black body with gold capsule
- Dimensions: Length 210 mm x Diameter 54 mm
- Weight: 450 g
- Power Requirements: 48V phantom power
- Manufactured in: USA
The Telefunken U48 is an exceptional microphone that brings professional-grade sound and versatility to your recording setup. Whether you’re capturing delicate vocals or the full sound of an orchestra, the U48 delivers world-class results. Its dual-pattern design, coupled with its rich tonal characteristics, makes it an indispensable tool for professional audio engineers and musicians alike.
