Trinnov NOVA – Advanced Monitor Controller with Room Optimization
The Trinnov NOVA brings the acclaimed Trinnov Optimizer technology to a wider range of studios, offering a professional-grade solution for precise room correction and monitor control. Known for their cutting-edge room correction systems used in top studios worldwide, Trinnov delivers high-end performance in a compact and accessible format with NOVA.
More than just a room optimizer, NOVA serves as the central hub for your entire monitoring setup, supporting configurations from stereo to 5.1 surround. It manages both analog and digital signals with unmatched precision, allowing seamless switching between audio sources and multiple monitor sets, regardless of connection format.
NOVA is fully compatible with Avid EUCON protocol and integrates easily with Trinnov’s La Remote. Whether you’re working in music production, post-production, or immersive audio, NOVA provides powerful control and precise monitoring in any environment.
Scalable and Future-Proof
Start with 2 channels and easily upgrade to 6 channels via a simple software license upgrade. Whether you’re adding a subwoofer, expanding to surround monitoring, or upgrading your studio, NOVA adapts quickly with minimal setup time.
Intuitive User Interface
Despite the complexity of the Optimizer engine, NOVA features an easy-to-use interface designed for smooth and efficient workflow. Engineers can focus on creativity while the system handles acoustic optimization in the background.
Reliable with Extended Warranty
Trinnov NOVA comes with a comprehensive 5-year warranty, ensuring long-term reliability and peace of mind for professional studios.

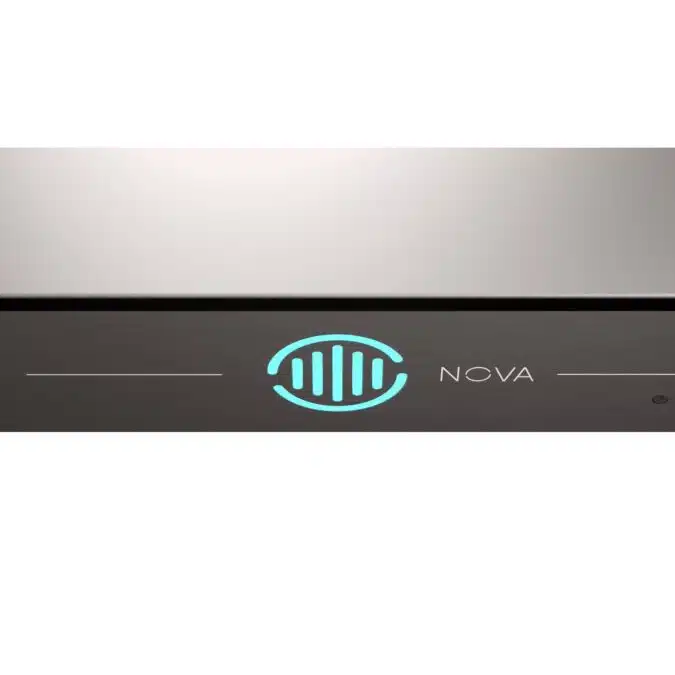

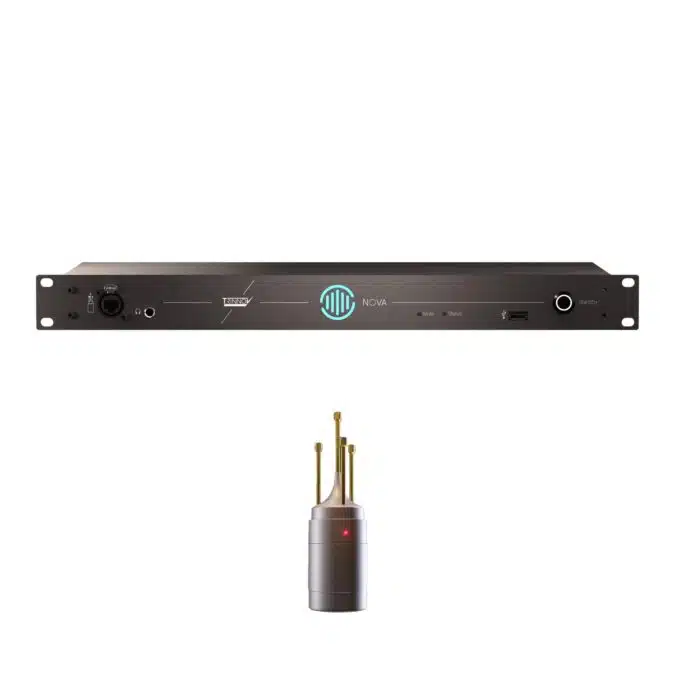

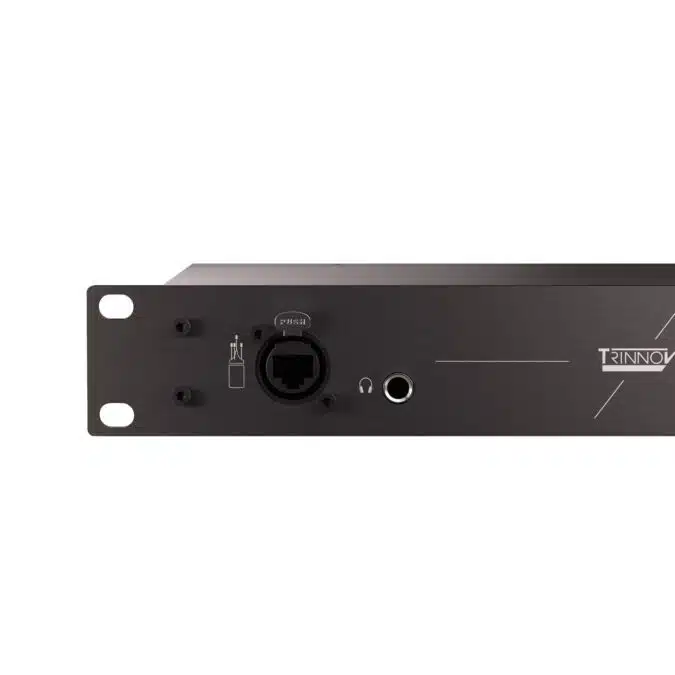

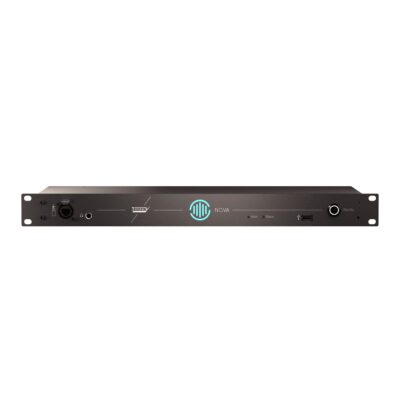

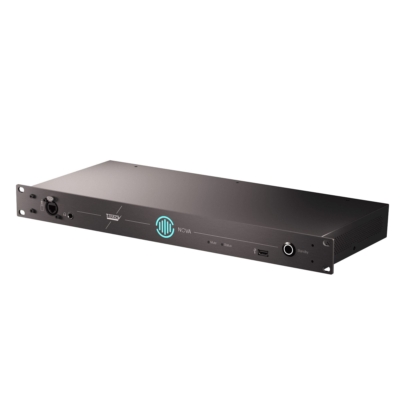

Front Panel Features

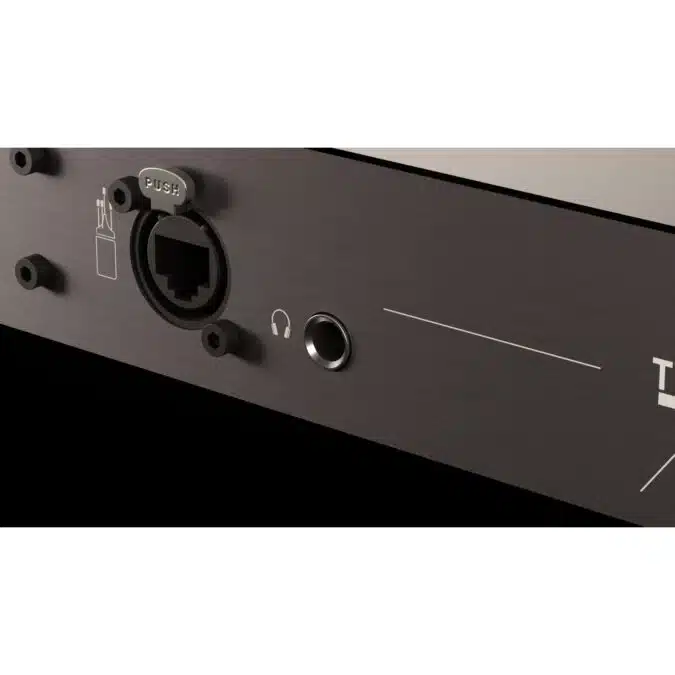

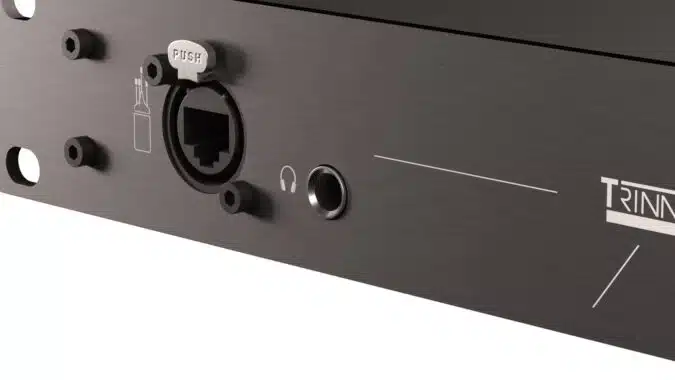

- 1x Calibration Microphone Ethercon Input
- 1x 6.35mm Stereo Headphone Output
- 1x USB Type A port for La Remote
- Standby / Mute Button
- Status LED

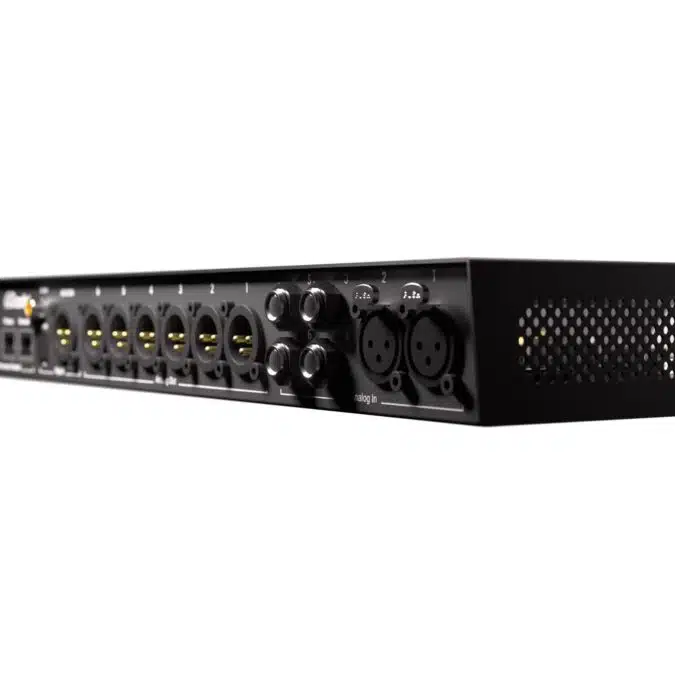

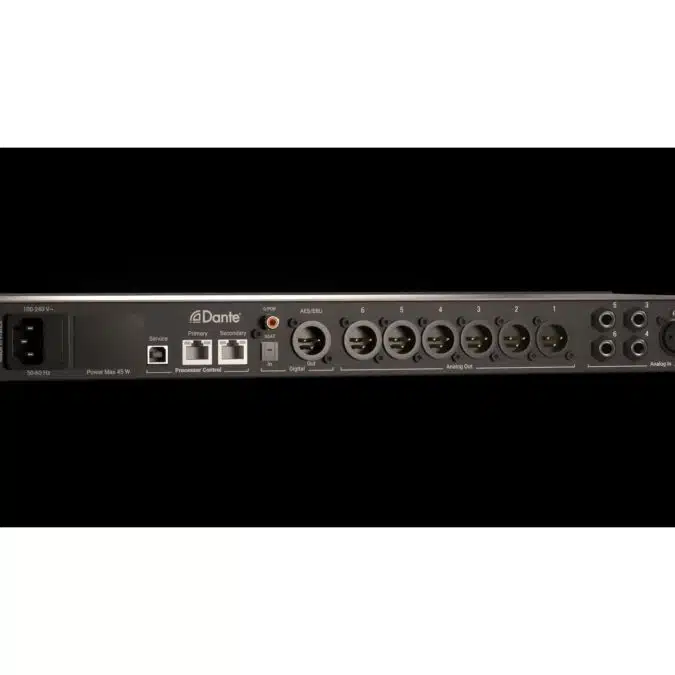

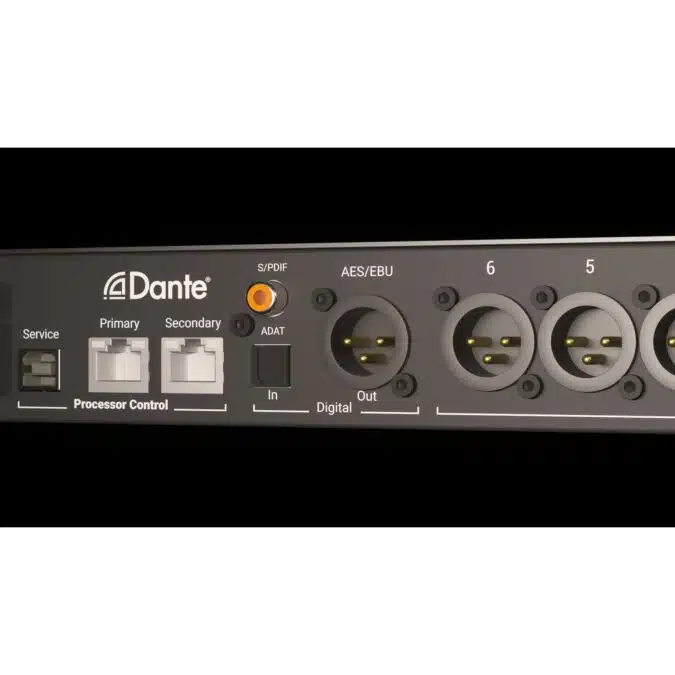

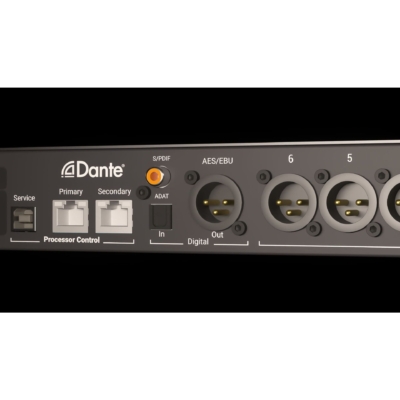

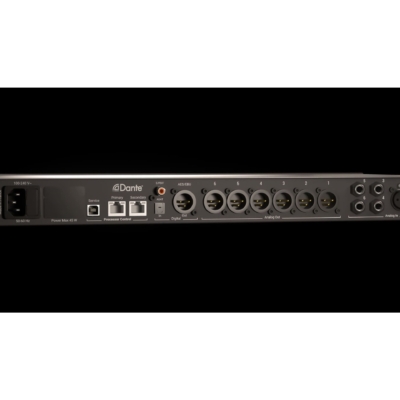

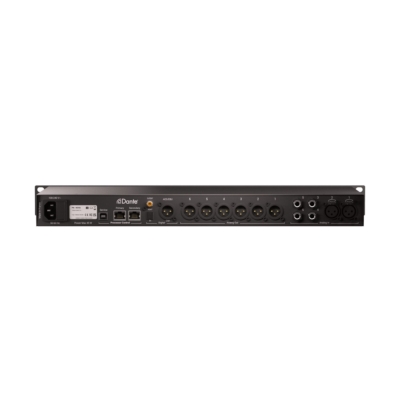

Rear Panel Connections
Digital
- 1x ADAT or SPDIF Optical Input
- 1x SPDIF Coaxial Input
- 2x Ethernet Ports (Dante 8in/8out)
- 1x AES3 XLR Stereo Output
Analog
- 2x XLR Balanced Inputs
- 4x 6.35mm Jack Balanced Inputs
- 6x XLR Balanced Outputs
Audio & Processing
- ADC/DAC Resolution: 24-bit / 192 kHz
- Dynamic Range (A/D and D/A): 115 dB (A-weighted)
- D/A THD+N Ratio: > 110 dB, 1kHz @ 0dBFS (20kHz BW)

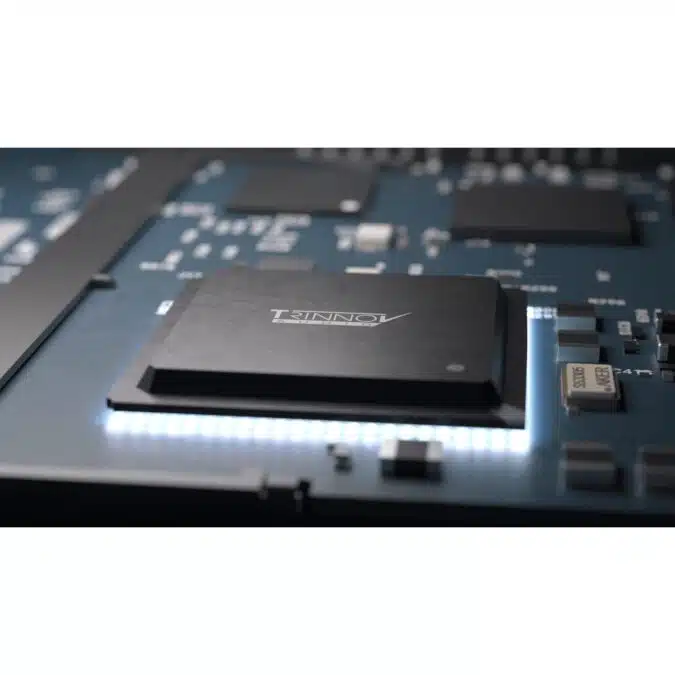

- Processing Resolution: 64-bit Floating Point
- Native Processing Sampling Rate (no SRC)
- 2 Optimizer Channels Included (Upgradeable)
Power Supply
- Power Requirement: 90-127V / 220-230V AC, 50Hz/60Hz
- Power Consumption: 15W
- Mains Fuse: T400mA Slow Blow
- Integrated IEC Power Supply (Fanless Design)
Network & Control
- IPV4 Network Connectivity with Dual Ports & Integrated Switch
- Supports DHCP / Auto-IP / Fixed IP Modes
- Compatible with EUCON via Trinnov App
Dimensions & Weight
- Unit Dimensions: 482 x 44 x 192 mm (19” x 1.7” x 7.3”)
- Shipping Box: 59 x 9 x 31 cm
- Weight: 2.5 kg (5.5 lbs)
- Shipping Weight: 4 kg
- Rack Mounting: 1U with Fixed Rack Ears
Trinnov NOVA is the ideal choice for professional studios seeking world-class room correction, flexible monitor control, and seamless integration with modern workflows. Perfect for music, broadcast, post, and immersive setups.
