500 Series EQ

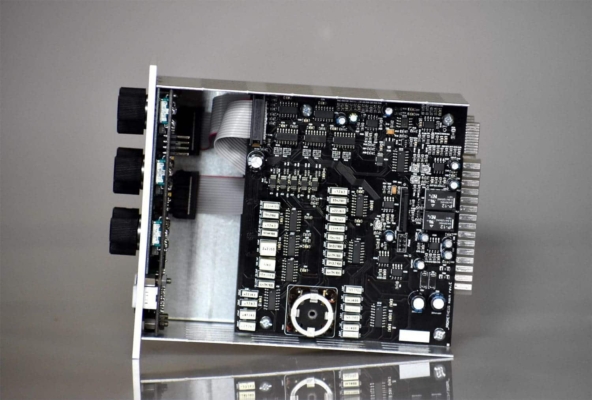

_PROMETHEUS is fully analog passive EQ with +24dBu of headroom. It features pultec-style warm sound with a lot of innovative improvements. Its modern approach to design allows instant recall of your classic vibe through very flexible plugin available in most common formats. _PROMETHEUS as all ng500 products, integrates with your DAW environment via front panel USB socket or _TITAN chassis.
+24dBu of headroom
Stereo / Dual mono / Mid/Side operation mode
Passive equalizer (Pultec-style) design based on inductors
Low frequency boost/cut – 20, 30, 60, 100, 120, 250 Hz.
High frequency boost – 2, 3, 4, 5, 8, 10, 12, 16 kHz.
High frequency cut – 4, 8, 12, 20 KHZ.
Proprietary THD implementation
Flexible DAW/Live plug-in control for instant recall
6 touch sensitive encoders allows to record automation
In and OUT metering with clip detection
A/B compare feature
Frequency response: 10Hz-150kHz (-2dB)
THD+N < 0.01% (1kHz,0dBu)
Input impedance: 10kohm
Output impedance: <100ohm
Max signal level: +24dBu
THD (MID switch): 1%
THD (HIGH switch): 2.5%
Power consumption: 70mA per rail
Dimensions : 76x133x158mm
Warranty: 2 years
