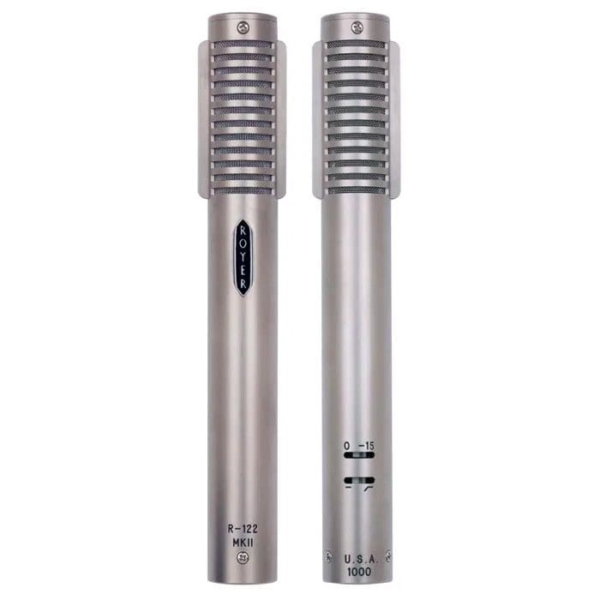

Royer Labs R-122 MKII Phantom Powered Mono Ribbon

17.390,00 kr (13.912,00 kr ex.moms)

På Lager!

Varenummer (SKU): 17704 Kategorier: , ,

R-122 MKII-båndmikrofonen fortsætter i rækken af Royer´s originale R-122 mikrofonr som var verdens første phantom-drevne aktive båndmikrofon.
Her er den naturlige R-121-lyd, men med 13 dB mere output, en omskiftelig -15 dB pad, en omskiftelig bas cut og impedans matching kredsløb, der gør den brugbar sammen med stort set alle preamps.

NB, det er en god ide at tilkøbe Sling-Shock RSM-SS1 som ses på sidste billede.

Specifikationer

  • Phantom powered circuitry provides high output and impedance matching
  • -15 dB pad before the mic’s electronics gives more headroom when activated.
  • Bass cut filter reduces proximity effect and bass below 100 Hz when activated
  • High SPL Capabilities
  • No distortion up to maximum SPL rating
  • Extremely low residual noise
  • Ribbon element is not affected by heat or humidity
  • Absence of high frequency phase distortion
  • Equal sensitivity from front or back of element
  • Consistent frequency response regardless of distance
  • Rear side of mic records slightly brighter when three feet or closer to sound source
  • Acoustic Operating Principle: Electrodynamic pressure gradient with active
  • electronics.
  • Polar Pattern: Figure-8
  • Generating Element: 2.5-micron aluminum ribbon
  • Magnets: Rare Earth Neodymium
  • Frequency Response: 30 – 15,000 Hz ±3 dB
  • Sensitivity: -36 dB (re. 1v/pa ±1 dB)
  • Switchable Pad: -15 dB
  • Switchable Bass Cut: 100 Hz (6 dB per octave)
  • Self-Noise: < 18 dB
  • Output Impedance: 200 Ohms, balanced
  • Output Connector: Male XLR 3-pin (Pin 2 Hot)
  • Rated Load Impedance: 1K-Ohm minimum
  • Maximum SPL: 135 dB @ 30 Hz
  • Power Requirements: 48-Volt Phantom Only
  • Supply Current: 4 mA
  • Dimensions: 206mm L X 25mm W (8 1/8” L X 1” W)
  • Weight: 309 grams (10.9 oz)
  • Finish: Burnished Satin Nickel / Matte Black
  • Chrome (optional)
  • Accessories: Protective wood case, mic sock
  • Optional Accessories: Wind screen, shock mount

Applications

  • Electric Guitar Amps
  • Acoustic Guitar
  • Drum Overheads
  • Percussion Instruments
  • Brass and Woodwinds
  • Horn Sections
  • Acoustic Piano
  • Acoustic Guitar
  • Harp
  • Solo Strings & String Sections
  • Choirs and Orchestras
  • Commercial Broadcast
  • Voice Over
