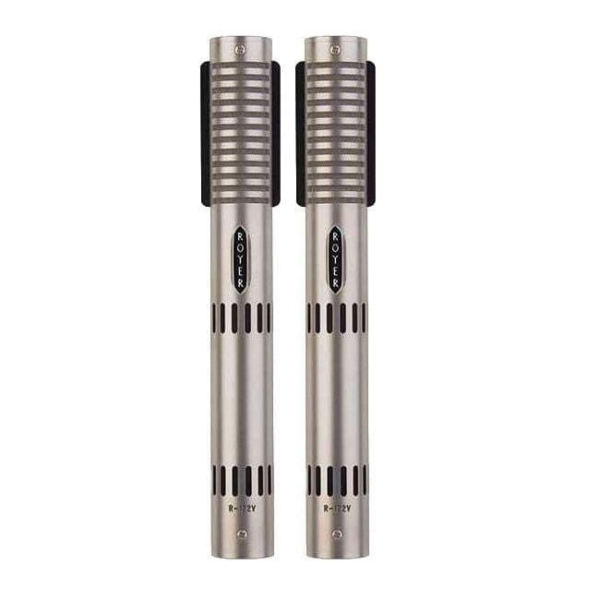

Royer Labs R-122V-MP Vacuum Tube Ribbon Microphone Set

R-122V-MP Vacuum Tube Ribbon Microphone (Mached Stereo) båndmikrofoner er Royers topmodel. Her forenes den kendte og elskede lyd af Royers båndmikrofoner med rør, og opnår dermed en helt suplim varme kombineret med klarhed og luft.

R-122V-MP er det absolut ypperste indenfor båndmikrofoner til stereo-optagelser.

NB, det er en god ide at tilkøbe Sling-Shock RSM-SS1 som ses på sidste billede.

Specifikationer

• Vacuum tube electronics provide high output capability, optimal impedance to the ribbon element and low output impedance
• Extremely low self-noise
• Operates from a dedicated power supply
• High SPL capabilities for electric guitar and percussion instruments
• Absence of high-frequency peaks, “ringing” and phase shifts
• Ribbon element unaffected by impedance/load, heat or humidity
• Very low magnetic leakage
• Equal sensitivity from front or back of element
• Consistent frequency response regardless of distance
• Rear side of mic records slightly brighter when three feet or closer to sound source
• Acoustic Operating Principle: Electrodynamic pressure gradient with vacuum tube
• electronics.
• Vacuum Tube: JAN mil-spec 5840W pentode wired in triode configuration
• Polar Pattern: Figure-8
• Generating Element: 2.5-micron aluminum ribbon
• Magnets: Rare Earth Neodymium
• Frequency Response: 30 -15,000 Hz +/- 3dB
• Sensitivity: -36 dB (re. 1v/pa +/- 1 dB)
• Self-Noise: < 18 dB
• Output Impedance: 200 Ohms, balanced
• Rated Load Impedance: 1 K-Ohm
• Maximum SPL: >135dB SPL @ 20 Hz
• Power Requirements: Plate supply: 135 VDC @2ma, Filament supply: 6 VDC@ 150ma from dedicated power supply.
• Dimensions: 206mm L, 25mm W (8 1/8 ” L, 1″ W).
• Weight: 300g (10.9 oz )
• Finish: Dull Satin Nickel/Matte Black Chrome optional

Applications

• Orchestral miking, close and distant
• Strings – solo & sections
• Acoustic Piano, Harp, etc.
• Electric Guitar
• Acoustic Guitar
• Vocals, Commercial Broadcast, Voice Over
• Brass, Horn Sections
• Drum Overheads, Room Miking
• Percussion Instruments
